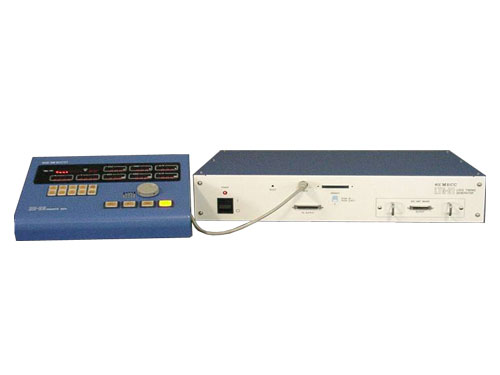

LTG-01
LVDS Timing Generator
Universal Signal Generator for LVDS outputs!
LTG-01 is a universal signal generator designed for LCD modules with LVDS input.By the replacement of the LVDS input board, the device can match with any LCD panels.
Its resolution goes from VGA, UXGA(1600 x 1200) and up to 4096 horizontal dots (including a blanking period) x 4096 vertical lines (including a blanking period).
Such signals as sync signals and data enable signals can be created in the unit of one clock of the master clock, so any signals can be quickly and easily generated and edited.
There are 3 channels of power supply outputs as VCC, VDD and VIF.
With the combination of 32 timing signals, 32 level setting and 32 video signals, the maximum of 64 test conditions can be preprogrammed.
