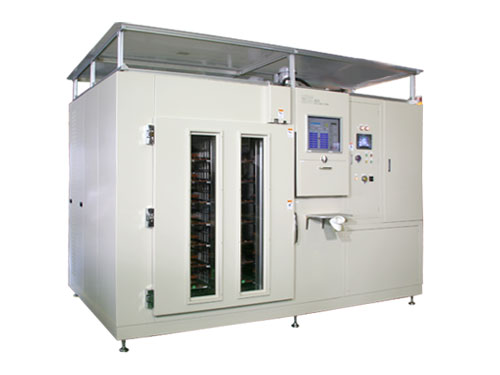

OAS-30
AM OLED CELL Aging System
Realized aging under highly accurate temperature control for mass productions.
- Aging up to 210 pieces of 2" - 3.5" panels at one time.
The OAS-30 can drive up to 210 OLED panels for - Effective and convenient test functions
Temperature and test conditions can be changed during aging.
Leakage tests and visual test by illuminating panels can be made. - Individual panel control
Powers to panels can be provided and shut off individually. - Current limitation
The protection circuit in the buffer unit limits over-current due to defective panels for safe and reliable operations. - Monitoring operation status
One monitoring screen shows status of all the pallets and panels. - Concentrated data control
Test data can be controlled by storing test results in an external computer via EtherNet. - Uniformity of temperature control
High uniformity of temperature on panel surfaces was realized by adopting a sideflow system chamber. - Quick temperature setting
Rise and fall time taken to reach the programmed temperature was minimized with a large capacity heater and cooler.
