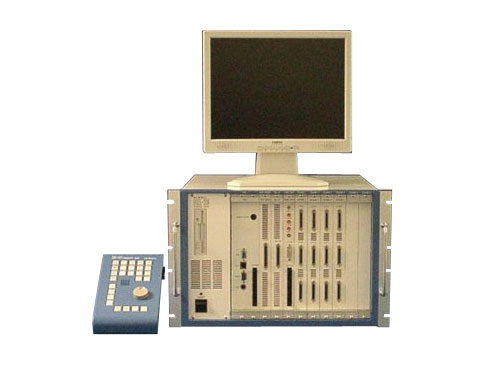

OEL-20
Universal OLED Signal Generator
Constant-current system output of video signals
The OEL-20 is a signal generator for FPD (Flat Panel Display) panels, for such applications as cellular phones or digital cameras, made with low or high molecule OLED materials, especially for active matrix system cells. Video signals output is in the constant-current power supply system and 8-bit gradations at the maximum.
- The maximum pixels are 176 dots x 240 lines x RGB by the addition of optional boards.
- 432 channel outputs at the maximum.
- Test patterns can be a simple pattern such as Raster or a natural image in a full-color bitmap.
- Up to 64 test conditions can be created by the combination of 32 timing signals, 32 voltage and signal level programming, and 32 video signals.
- External signals, including moving pictures, can be displayed by the input of VGA signals (VESA standard 640 x 480 @75Hz) via the DVI connector.
- A screen to display all the programmed parameters is available.
- Quick and easy calibration of amplitudes of output signals.
- Test conditions and test patterns can be programmed on the hard disk on the OEL-20 via a floppy disk or LAN.
