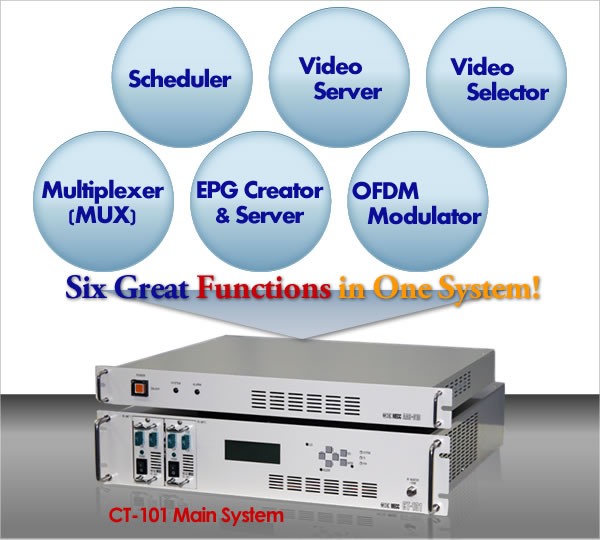

The CT-101 OFDM Signal Transmitter is an automatic transmitter to transmit SD/HD local (community) programs. The system consists of a scheduler, a multiplexer, an EPG creator and an OFDM modulator, so an original programs can be easily broadcasted on digital terrestrial broadcasting. The system enables to save much work time as MPEG2-TS data can be transmitted from the video server.

Major Features

Switching Video Data as MPEG2-TS Files.
The CT-101 is a file-base system to switch and trasmit MPEG2-TS data CT-101 after editing video images. The system will save much work time to convert data from/to video tapes and to transmit data, and cost for equipment such as expensive encoders and recorders.
Integrated Multiplexer (MUX).
The CT-101 integrates a multiplexer and multiple contents can be transmitted at the same time.
Scheduler and EPG Creator.
The CT-101 system contains a scheduler to transmit programs. Only by adding a comment to each program file, EPG (Electronic Program Guide) will autmatically be created.
Observation Monitoring and Reporting.
Observation monitoring software is included in the system and troubles be alarmed when they occurs. The report can be instantly sent to registered e-mail addresses (and mobile phones).

CT-101 Block Diagram

Block Diagram

CT-101 Block Diagram

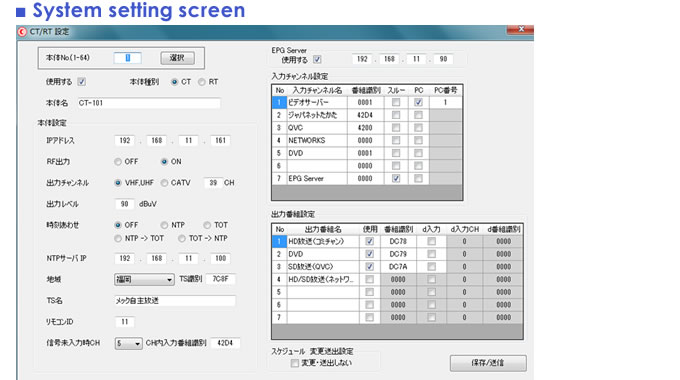

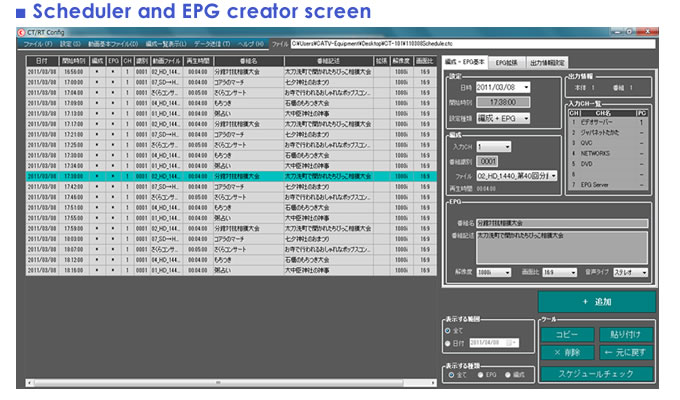

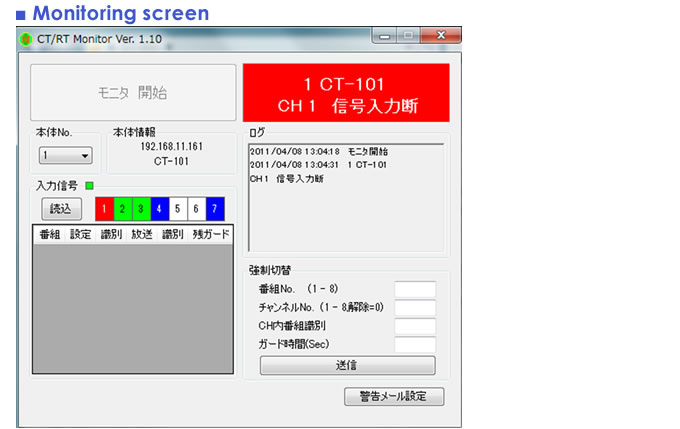

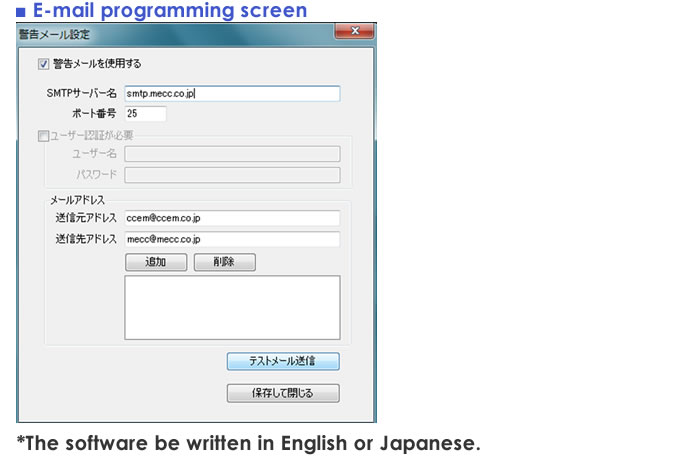

Scheduler and EPG creator screen System setting screen Monitoring screen E-mail programming screen
Input portNumber of ports: 7
Interface: DVB-ASI
Output portNumber of ports: 1
Interface: OFDM (5.6MHz)
Video ServerHDD: 2TB x 2 (RAID1)
Line Voltage90 - 240V AC, 50/60Hz
Ambience10 to 40 degree C
Power Consumption 100W or less
