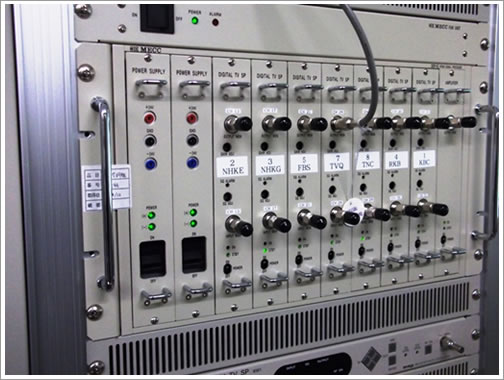

OFDM Signal Processor

OSP-01

Pass-through transmission of OFDM terrestrial broadcasting.Especially designed for Cable Television Stations. OSP-01

Major Features

  • Up to 7 channels can be transmitted.
  • Redundant hot-swap power supplies for emergency.
  • Reliable operation
    • - No mutual interference between channels.
    • - Stable output signal level with AGC circuit.
  • Channel setting for the same or different frequency.

Title

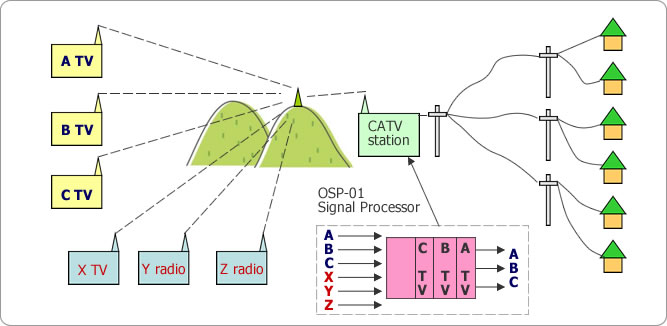

Pass-through system by OSP-01

System configuration

Outline

The OSP-01 is a signal processor for OFDM digital terrestrial broadcasting performing;

  • - Receiving terrestrial broadcast waves
  • - Converting frequencies to set the same or different channels
  • - Controlling output levels
  • - Retransmitting each channel

System Configuration

The OSP-01 consists of the following units.

  • - Sub rack chassis OSP-01-SR ①
  • - Signal processror unit OSP-01-SP ② - ⑧
  • - Output amplifier unit OSP-01-AMP ⑨
  • - Power supply unit OSP-01-PS ⑩ - ⑪
  • - Fan unit for ventilation OSP-01-FAN ⑫
