HD Uplink Transmitter/Receiver for Live Broadcasting

HDT-201 HDR-201

OFDM Modulation enabled use at the frequency band  where much noise exists. image:HDT-201 HDR-201

The HDT-201 and the HDR-201 are a transmitter and a receiver for live HD/SD broadcasting with coaxial / optical fiber cable network.The compact body and easy operation facilitates on-site work greatly!

Major Features

  • Compact and light-weight body of the transmitter realized excellent mobility.
  • H.264 encoder and decoder are integrated in each compact body,facilitating on-site setup.
  • Noiseless digital intercom greatly helps communications between the cite and the center (head-end).
  • Bit rates can be programmed in the range from 5 to 22Mbps, acquiring beautiful images.
  • The V-mount batteries can be used as power source of the transmitter, which needs no power generators on the site.
  • IP transmission function ; The devices can be used even where no coaxial cable lines are available.

Spec

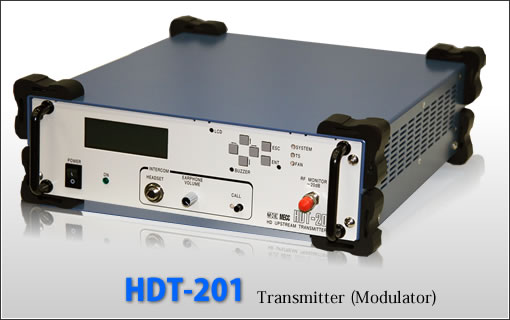

HDT-201 Transmitter (Modulator)
Video signal input
Signal SystemHD-SDI / SD-SDI
ConnectorBNC-J 75Ω
RF output
Center Frequency13MHz to 52MHz (variable per 1MHz)
Output level90dBμV to 120dBμV
ConnectorF-type 75Ω
Modulation systemOFDM
Transmission band5.6MHz
Transmission rate22.6Mbps or less
*when transmitting 204byte packet.
Video codingMPEG2 video regulation
ITU-T recommendation H.264
Audio codingMPEG-1 Audio Layer Ⅱ(MP2)
OFDM modulation
Signal SystemDigital terrestrial broadcasting
Frequency band5.6MHz
LayerLayer A
Number of segments13
Sub-carrier modulationQPSK, 16QAM, 64QAM
Guard interval1/4, 1/8, 1/16
Preset
Number of parameters10
Items to presetModulation; 64QAM / 16QAM / QPSK
Bitrate, Mode, Interleave
Coding rate
Digital Intercom
Input systemHeadset / 2-wire / 4-wire
Transmittion frequency9 channels from 13MHz to 23MHz
Receiving frequency9 channels from 70MHz to 74MHz
Transmission level80 to 120dBμV (variable per 5dB)
Receiving level60dBμV to 80dBμV
Modulation systemQPSK
IP Transmission
Line 10 BASE-T / 100BASE-TX
Transmission SystemRTP / UDP / IP
Transmission Rate 20Mbps or less
Video codingMPEG-4 Video ITU-T H.264
Audio codingMPEG4 AAC LC
External interfaceRS-232C

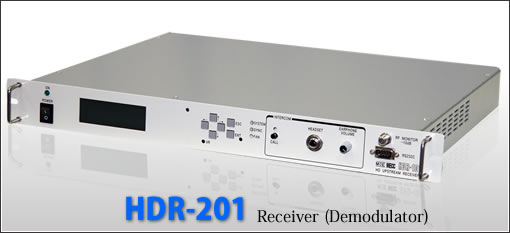

HDR-201 Receiver (Demodulator)
Video signal input
Signal SystemHD-SDI / SD-SDI
ConnectorBNC-J 75Ω
RF input
Center frequency13 to 52MHz (variable per 1MHz)
Input level60dBμV~80dBμV
ConnectorF-type 75Ω
Modulation systemOFDM
Transmission band5.6MHz
Transmission rate22.6Mbps or less
∗when transmitting 204byte packet.
Video codingMPEG2 video regulation
ITU-T recommendation H.264
Audio codingMPEG-1 Audio Layer Ⅱ(MP2)
Digital Intercom
Input systemHeadset / 2-wire / 4-wire
Transmittion frequency9 channels from 70MHz to 74MHz
Receiving frequency9 channels from 13MHz to 23MHz
Transmission level80 to 120dBμV (variable per 5dB)
Receiving level60dBμV to 80dBμV
Modulation systemQPSK
IP Transmission
Line 10 BASE-T / 100BASE-TX
Transmission SystemRTP / UDP / IP
Transmission Rate 20Mbps or less
Video codingMPEG-4 Video ITU-T H.264
Audio codingMPEG4 AAC LC
External interfaceRS-232C
General Specifications
TemperatureHDT0 to 40 degree C
HDR5 to 35 degree C
Humidity30 to 80% (without dews)
Rated voltage90 to 240VAC, 50Hz/60Hz
Power consumptionHDT70W or less
HDR30W or less
DimensionsHDT324(W)×109(H)×325(D)mm
HDR 480(W)×49(H)×370(D)mm
WeightHDT5.5kg or less
HDR5.0kg or less
